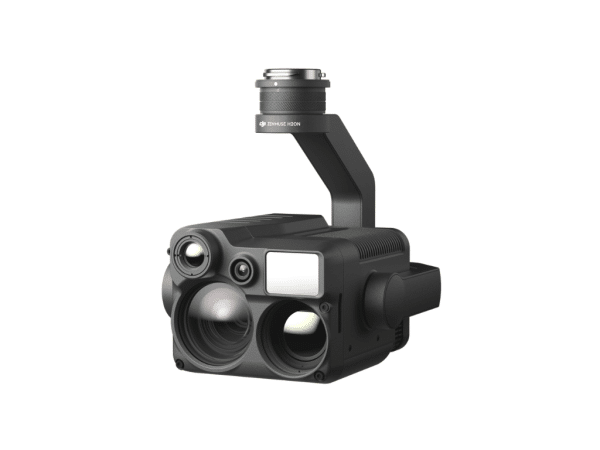

With a combination of durability, performance, and advanced payloads, the DJI Matrice 300 RTK has set the standard for enterprise drones. The Zenmuse H20, a hybrid multi-sensor solution for industrial applications and public safety missions, was released in 2020. Soon after, the Zenmuse H20T, Zenmuse L1, and Zenmuse P1 arrived. The Zenmuse H20N, DJI’s most recent payload, is a hybrid thermal, zoom, laser rangefinder, and Starlight sensor that provides powerful aerial insights regardless of weather or time of day.
In comparison to standard cameras, starlight sensors have a wider aperture and a slower shutter speed. In low-light situations, this allows more light to reach the sensor, resulting in improved clarity. The sensor is used in conjunction with algorithms that reduce image noise and improve image quality.

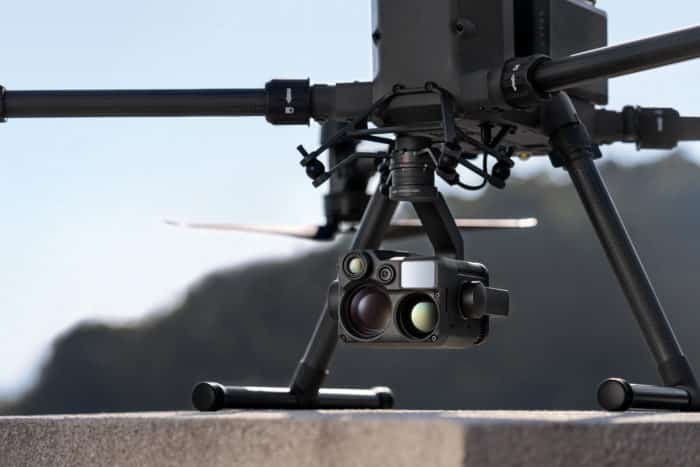

On the H20N and the Matrice 300 RTK, the Starlight sensor is found in both the Zoom and Wide cameras. When the payload is used in Night mode, the camera adjusts the ISP parameters and switches the lens’ IR filter.
Operators can detect light sources as low as 0.0001 Lux, far beyond what the human eye can see, thanks to an intelligent low-light enhancement algorithm.
The H20N includes dual thermal sensors to relay detailed infrared data, which complements the new Starlight capability. Two fixed lens 640×512 thermal cameras, one with a 2x zoom and the other with an 8x zoom, eliminate the need for continuous zoom.
You don’t have to descend the M300 RTK dangerously low altitudes to examine some hot pixels on your screen any longer. You can simply zoom in to see if the source of heat is a person, a dog, or something else entirely. This advancement extends the observation range of the H20N’s thermal imaging capabilities, saving pilots valuable time at a time when every second counts.
When the H20N’s hybrid sensors are used in tandem, they are most effective. Operators can improve visibility in difficult conditions by zooming in on a split-screen with both the thermal and visual sensors at the same time.
Having this flexibility at your fingertips when using the M300 is critical in low-light situations and when certainty is required before making operational decisions.
RM29,717.00
